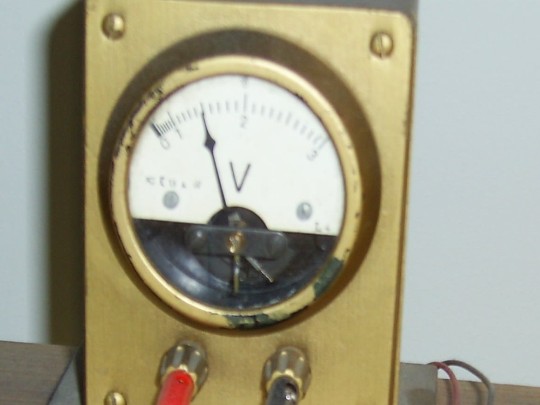

A close-up of the voltage meter. Range: 0.5 V - 3 V          A better


The voltage of the AA battery is measured by the voltage meter.
The battery is to the right of the former picture. The internal
resistance of voltage meter is only 9 ohms and of that reason
you use a special device between voltage meter and battery.
The internal resistance of this device is 100 kohms.
